LiveU Solo Pro Configuration

You must have an active LRT subscription and have an LRT Zone selected before proceeding.

1. Open the Solo Portal

2. Click "Select New Destination"

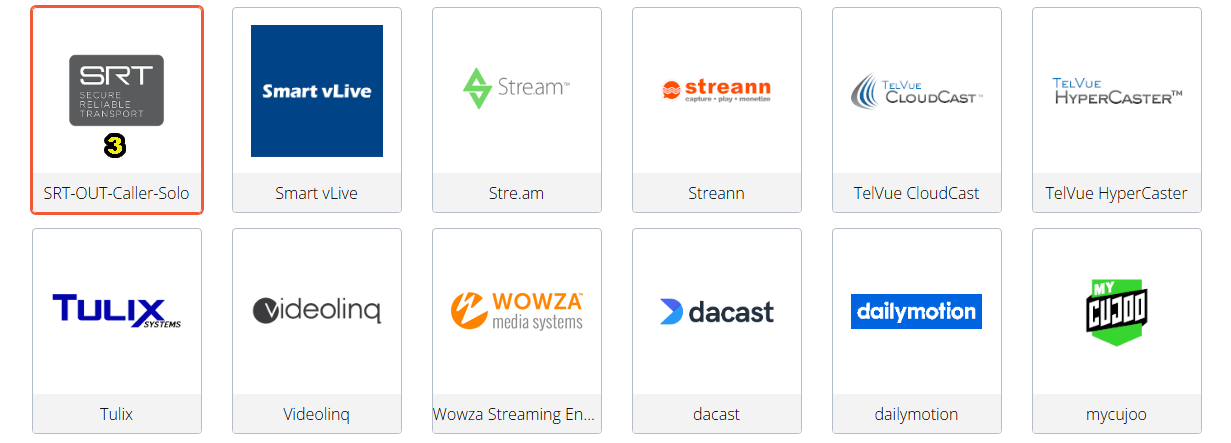

3. Click "SRT-OUT-Caller-Solo

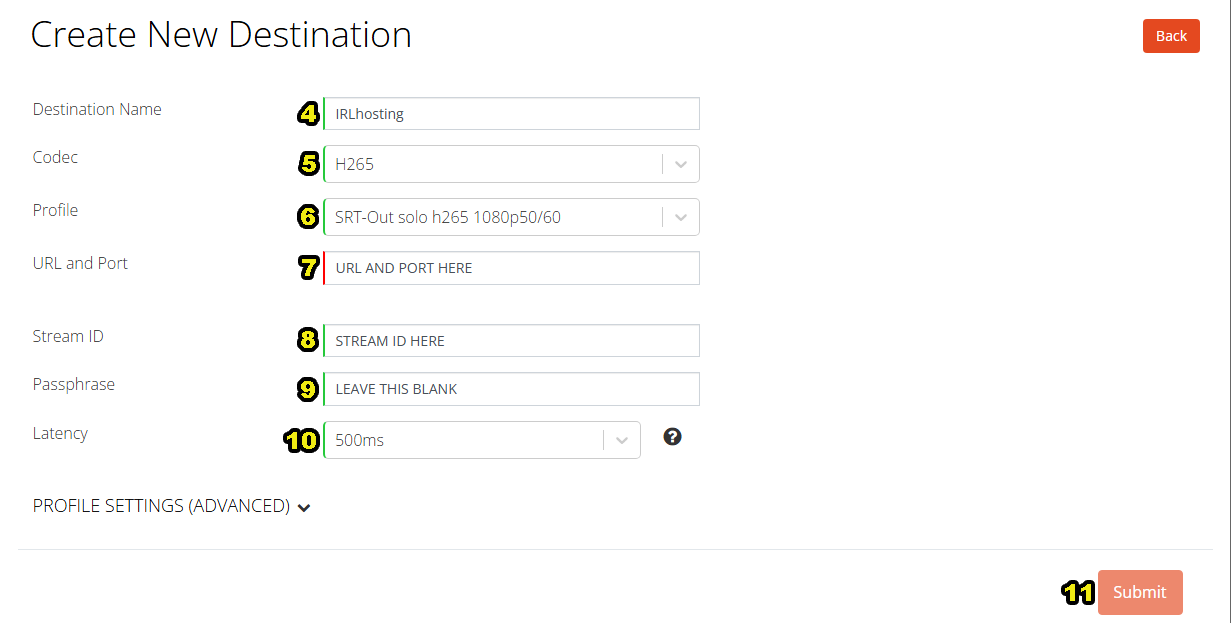

4. Name your destination "IRLhosting"

5. Select H265

6. Select the SRT-Out solo h265 1080p50/60 profile (or the 720p profile if you want to stream in 720p)

7. URL and Port: Copy your srt URL here

8. Stream ID is: Copy your Stream Key here

9. Leave Passphrase blank

10. Set Latency to 500ms or greater

11. Submit settings

12. Power on your LIVEU Solo, connect it to the internet and select the newly created "IRLhosting" Streaming Destination

LiveU Solo Pro setup is complete!

Streaming process:

• Start broadcasting with your LiveU, this sends audio/video to your OBS Instance

• Use IRLremote+ or chat commands (Twitch/Kick only) to start your OBS Instance broadcasting to streaming platforms
